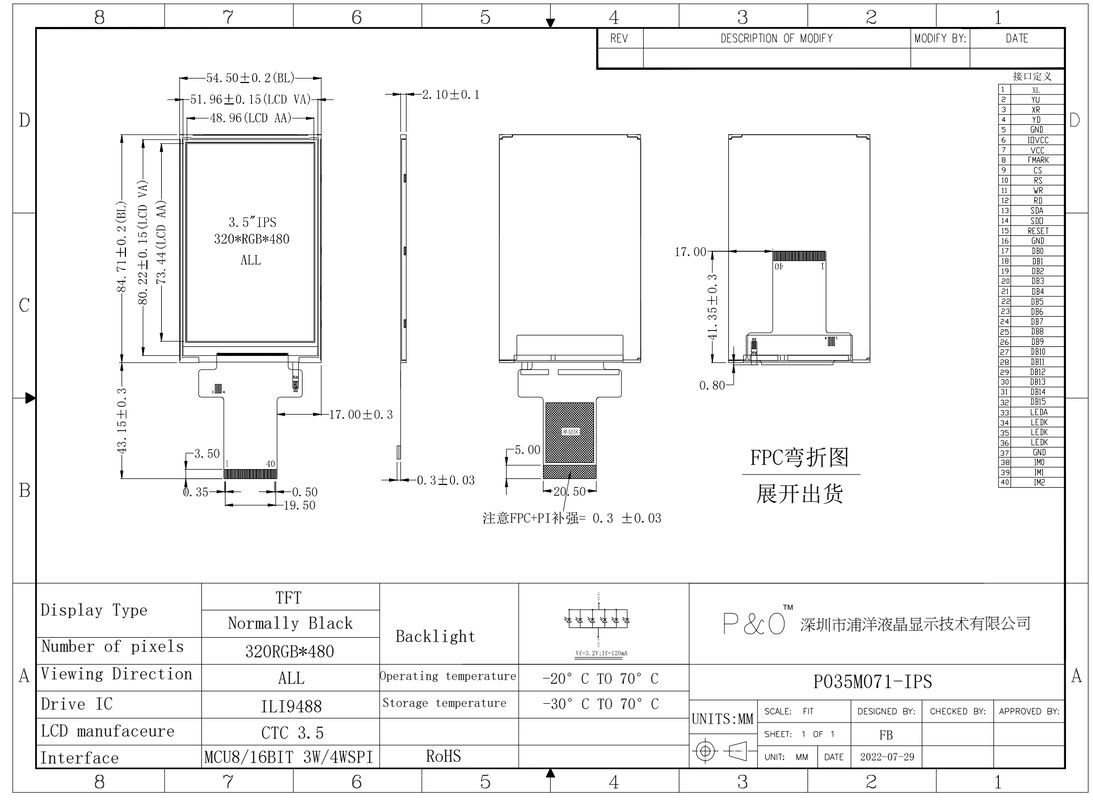

Parameter:
| Model | P035M071-IPS |
| Screen Size | 3.5 inch |
| Number of Pixel | 320RGB(H)x480(V) |
| Display area | 48.96(H)x73.44(V)mm |
| Pixel pitch | 51(H)x153(V) um |
| Pins | 40 pins |
| Outline Dimension | 54.48x84.71x2.10mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262k |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 700:1 |
| Interface | MCU 8/16bit 3/4wire SPI |
| Back-light | LED Side-light type |
| Drive IC | ILI9488 |
| Operation Temperature | -20~70 ℃ |
| Storage Temperature | -30~80 ℃ |

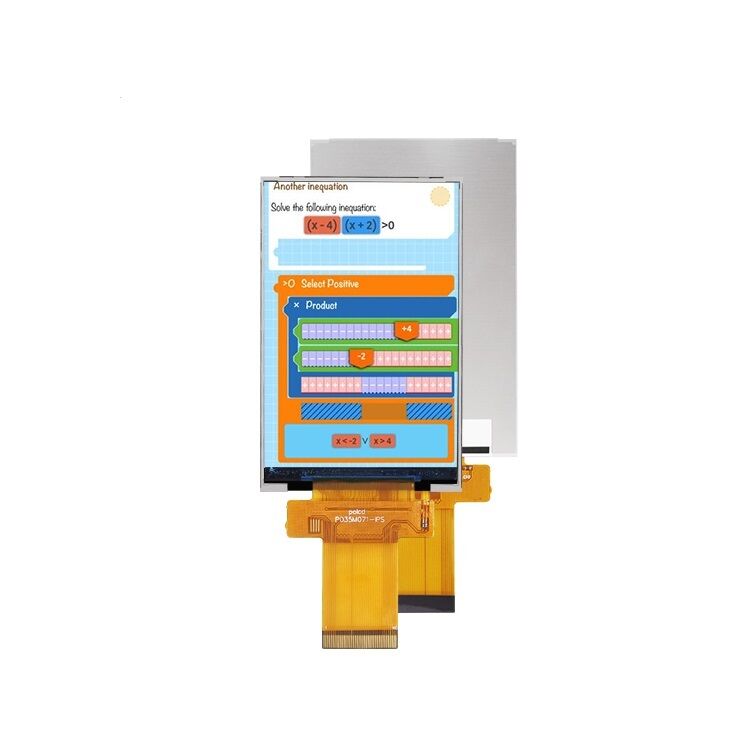

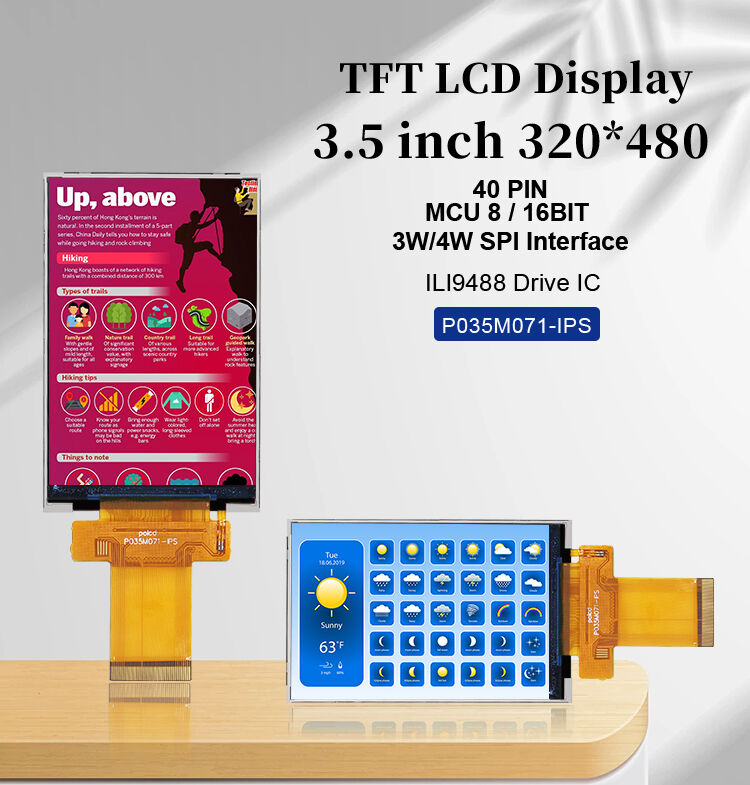

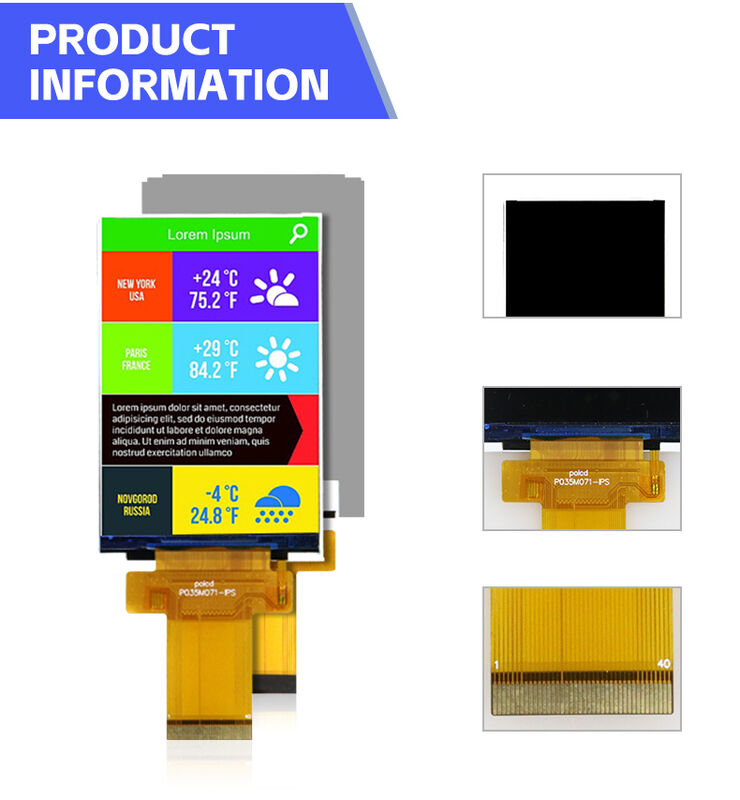

Description of 3.5 inch TFT LCD:
3.5 inch TFT LCD is a high-quality display screen that is commonly used in various electronic devices, including handheld devices, automotive displays, and medical equipment.
The 3.5 inch TFT LCD is a versatile and reliable display technology that offers high-quality display performance, low power consumption, and durability. Its wide range of applications and customization options make it an ideal choice for a variety of electronic devices.
