สถานที่กำเนิด:
เซินเจิ้นประเทศจีน
ชื่อแบรนด์:
Polcd
ได้รับการรับรอง:
RoHS, ISO9001
หมายเลขรุ่น:
P035M068-IPS
ติดต่อเรา
วิดีโอ
วิดีโอ

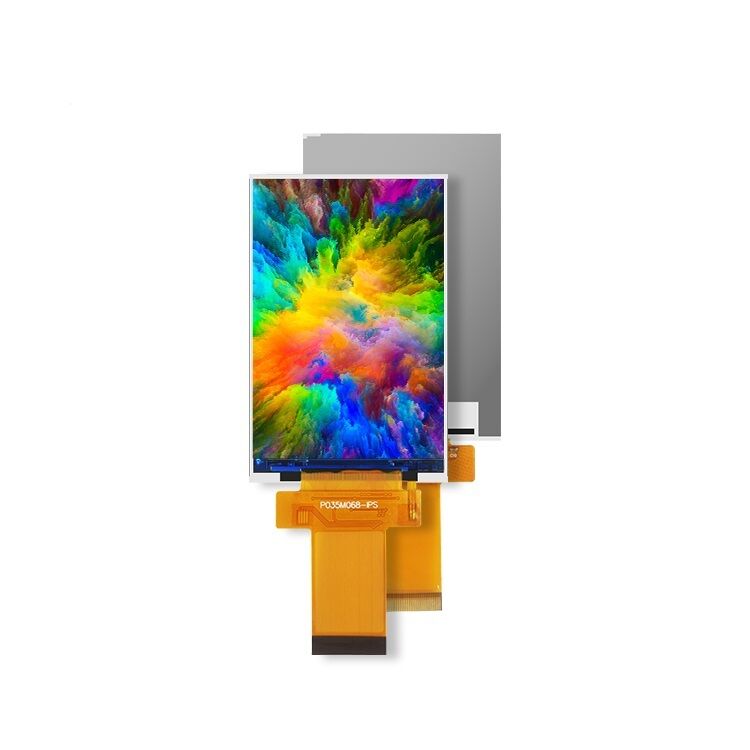

3.5 inch TFT LCD is a type of display screen that uses thin-film transistor (TFT) technology to provide clear and vivid images. The term "TFT" refers to the type of transistor used to control the individual pixels on the screen, which allows for faster refresh rates and better color accuracy compared to other types of LCD screens.
The term "3.5 inch" refers to the diagonal size of the screen, which measures 3.5 inches from one corner to the opposite corner. This type of screen is commonly used in small electronic devices such as digital cameras, portable media players, and handheld gaming devices.
| Model No. | P035M068-IPS |
| Screen Size | 3.5 inch |
| Number of Pixel | 320RGB(H)x480(V) |
| Pin | 40 pin |
| Display area | 48.96(H)x73.44(V)mm |
| Pixel pitch | 51(H)x153(V)um |

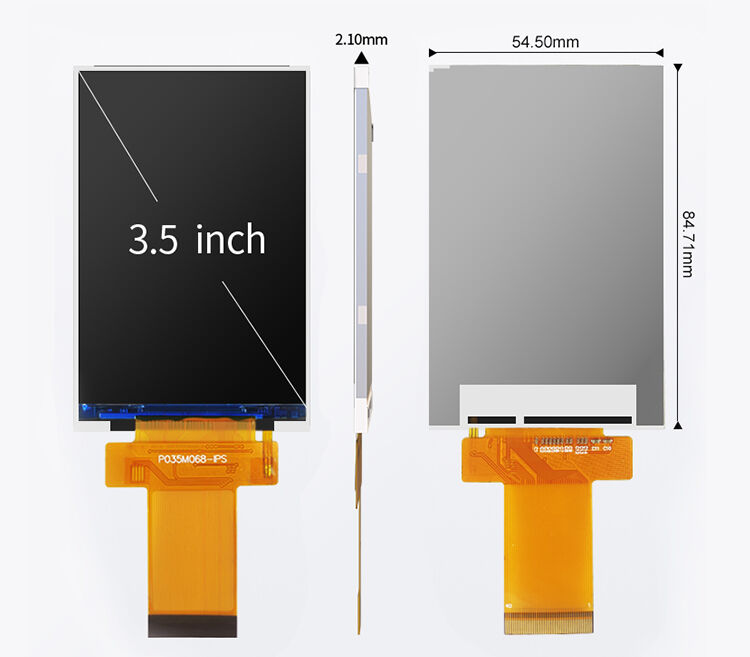

| Outline Dimension | 54.50x84.71x2.10mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 700:1 |
| Interface | 18BIT RGB |
| Back-light | LED Side-light type |
| Drive IC | ILI9488 |

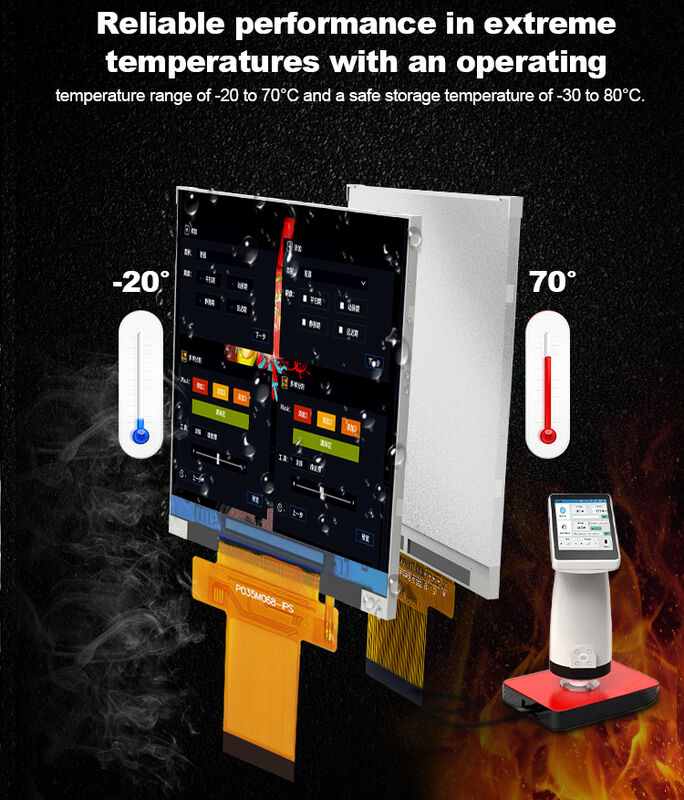

| Operation Temperature | -20~70 ℃ |
| Storage Temperature | -30~80 ℃ |
