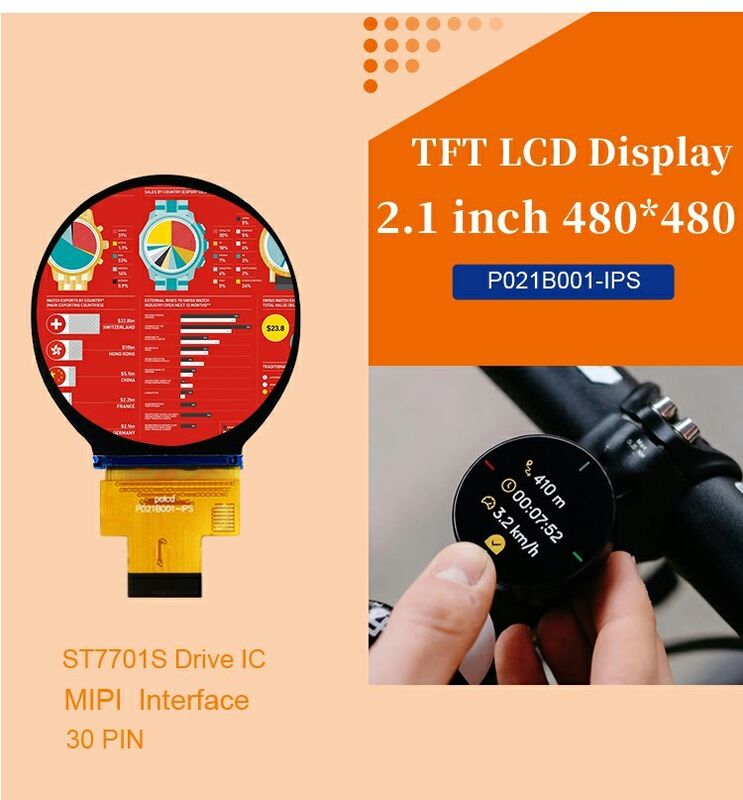

Introduction:
The 2.1-inch circular LCD (Liquid Crystal Display) is an innovative and compact display module that offers a versatile solution for various electronic applications. With its small form factor and excellent visual performance, this circular LCD is becoming increasingly popular in today's technology-driven world.
Application:
This LCD module finds applications in various industries, including smartwatches, fitness trackers, portable medical devices, electronic instruments, and smart home systems. Its small size and adaptability make it suitable for a wide range of products.

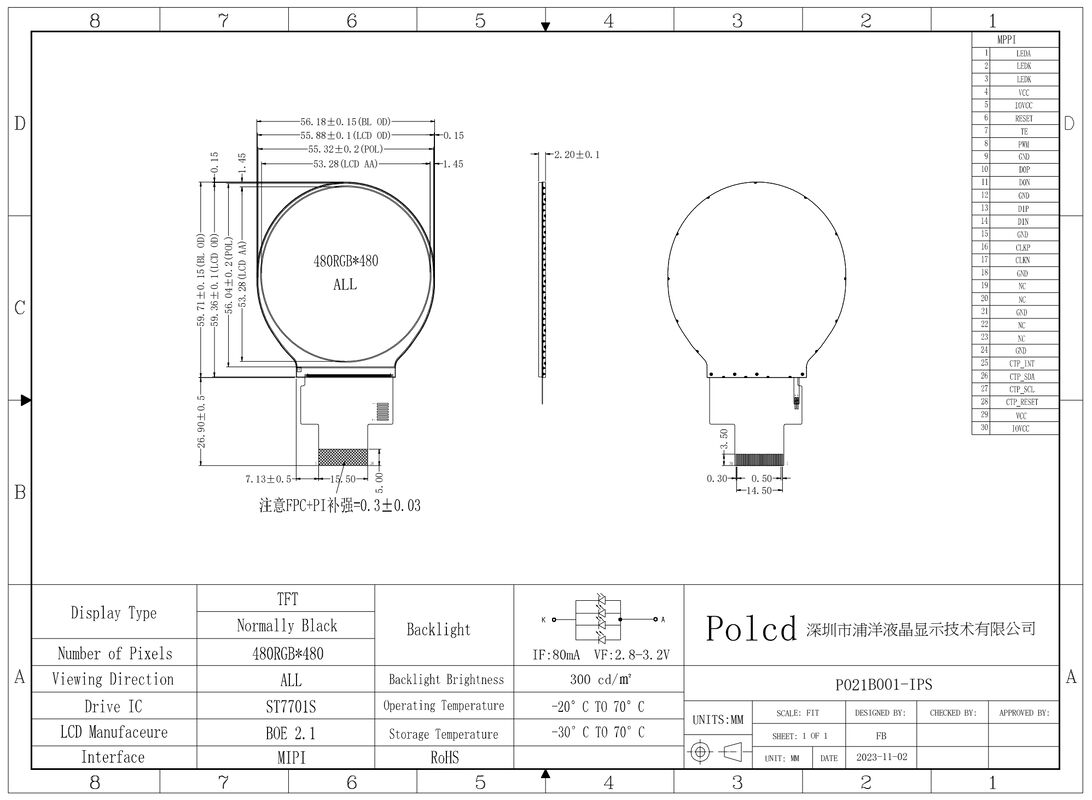

Parameter:
| Model | P021B001-IPS |
| Screen Size | 2.1 inch |
| Number of Pixel | 480RGB(H)x480(V) |
| Display area | 53.28(H)x53.28(V)mm |
| Pixel pitch | 111(H)x111(V)um |
| Pin | 30 pins |
| Outline Dimension | 56.18x59.71x2.2mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262k |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 1000:1 |
| Interface | 2Line MIPI |
| Back-light | LED Side-light type |
| Drive IC | ST7701S |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
